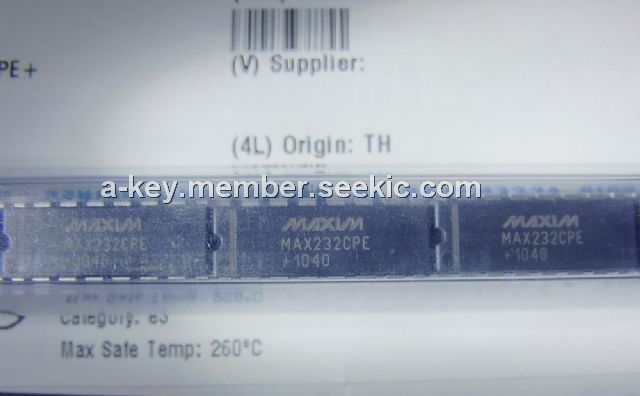

MAX232CPE+

IC 2DVR/2RCVR RS232 5V 16-DIP - MAX232CPE+

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.10

PartNumber:: MAX232CPE+

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lily Zeng 's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-24

From Other Seller

Part Number:MAX232CPE+
US $0.10 - 0.10
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

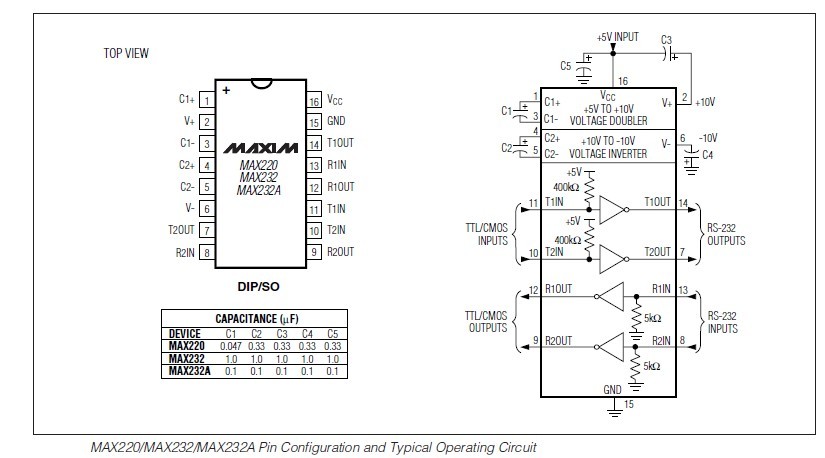

Product Summary

The MAX232CPE+ family of line drivers/receivers is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available.These parts are especially useful in battery-powered systems,since their low-power shutdown mode reduces power dissipation to less than 5μW.The MAX232CPE+ use no external components and are recommended for applications where printed circuit board space is critical.Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

Parametrics

Absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+ (Note 1):(VCC - 0.3V) to +14V; (3)V- (Note 1): +0.3V to -14V; (4)Input Voltages TIN: -0.3V to (VCC - 0.3V); (5)RIN (Except MAX220): ±30V; (6)TOUT (Except MAX220): ±15V; (7)Output Voltages of TOUT: ±15V; (8)Output Voltages of ROUT: -0.3V to (VCC + 0.3V); (9)Driver/Receiver Output Short Circuited to GND: Continuous; (10)Continuous Power Dissipation (TA = +70℃) 16-Pin Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW; (11)Operating Temperature Ranges: 0℃ to +70℃; (12)Storage Temperature Range: -65℃ to +160℃; (13)Lead Temperature (soldering, 10s): +300℃; (14)Soldering Temperature (reflow) 20 PDIP (P20M+1): +225℃; (15)All other lead(Pb)-free packages: +260℃; (16)All other packages containing lead(Pb):+240℃.
