Product Summary

The LM2931CM is a positive voltage regulator. It features a very low quiescent current of 1mA or less when supplying 10mA loads. This unique characteristic and the extremely low input-output differential required for proper regulation (0.2V for output currents of 10mA) make the LM2931CM the ideal regulator for standby power systems. Applications of the LM2931CM include memory standby circuits, CMOS and other low power processor power supplies as well as systems demanding as much as 100mA of output current.

Parametrics

LM2931CM absoltue maximum ratings: (1)Input Voltage, Operating Range: 26V; (2)Overvoltage Protection: 60V; (3)Internal Power Dissipation: Internally Limited; (4)Operating Ambient Temperature Range: -40 to +85℃; (5)Maximum Junction Temperature: 125℃; (6)Storage Temperature Range: -65 to +150℃; (7)Lead Temp. (Soldering, 10 seconds): 230℃; (8)ESD Tolerance: 2000V.

Features

LM2931CM features: (1)Very low quiescent current; (2)Output current in excess of 100 mA; (3)Input-output differential less than 0.6V; (4)Reverse battery protection; (5)60V load dump protection; (6)-50V reverse transient protection; (7)Short circuit protection; (8)Internal thermal overload protection; (9)Mirror-image insertion protection; (10)Available in TO-220, TO-92, TO-263, SO-8 or 6-Bump micro SMD packages; (11)Available as adjustable with TTL compatible switch; (12)See AN-1112 for micro SMD considerations.

Diagrams

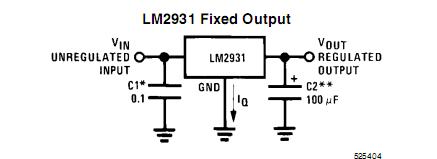

LM2931CM circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM2931CM
LM2931CM

National Semiconductor (TI)

Low Dropout (LDO) Regulators

Data Sheet

0-95: $0.39
95-190: $0.34
190-285: $0.30
285-570: $0.25
LM2931CM/NOPB
LM2931CM/NOPB

National Semiconductor (TI)

Low Dropout (LDO) Regulators

Data Sheet

0-1: $0.50
1-25: $0.39
25-100: $0.34
100-250: $0.30
LM2931CMX/NOPB
LM2931CMX/NOPB

National Semiconductor (TI)

Low Dropout (LDO) Regulators SERIES LDO REG

Data Sheet

0-1: $0.55
1-25: $0.44
25-100: $0.38
100-250: $0.34
LM2931CMX
LM2931CMX

National Semiconductor (TI)

Low Dropout (LDO) Regulators

Data Sheet

0-2500: $0.22
2500-5000: $0.21
5000-10000: $0.16
