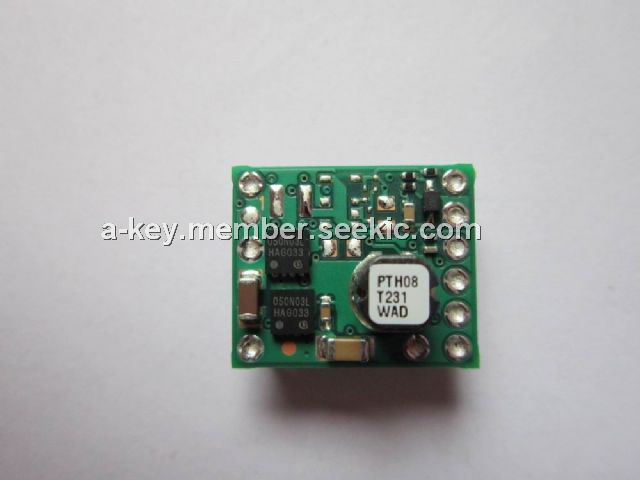

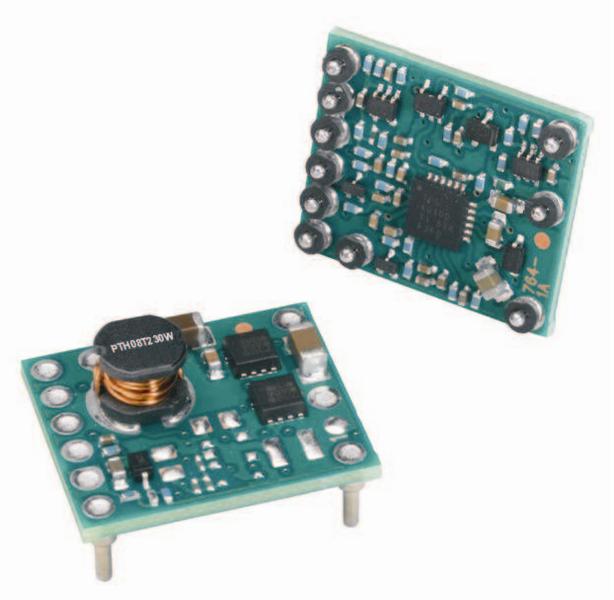

PTH08T231WAD

Product Summary

The PTH08T231WAD is a higher input voltage (4.5V to 14V) version of the PTH08T231WAD (2.2V to 5.5V), 6-A rated, non-isolated power module. The PTH08T231WAD represents the 2nd generation of the PTH series of power modules which include a reduced footprint and improved features. The PTH08T231WAD is optimized to be used in applications requiring all ceramic capacitors. Operating from an input voltage range of 4.5V to 14V, the PTH08T231WAD requires a single resistor to set the output voltage to any value over the range, 0.69V to 5.5V. The wide input voltage range makes the PTH08T231WAD particularly suitable for advanced computing and server applications that use a loosely regulated 8-V to 12-V intermediate distribution bus. Additionally, the wide input voltage range increases design flexibility by supporting operation with tightly regulated 5-V, 8-V, or 12-V intermediate bus architectures.The PTH08T231WAD is widely used in Complex Multi-Voltage Systems, Microprocessors and Bus Drivers.

Parametrics

PTH08T231WAD absolute maximum ratings: (1)VTrack, Track pin voltage: –0.3 to VI + 0.3 V; (2)VSYNC, SYNC pin voltage: –0.3 to 6.0 V; (3)TA, Operating temperature range, Over VI range: –40 to 85℃; (4)Tstg Storage temperature, Storage temperature of module removed from shipping package: –55 to 125℃.

Features

PTH08T231WAD features: (1)Up to 6-A Output Current ; (2)4.5-V to 14-V Input Voltage; (3)Wide-Output Voltage Adjust (0.69 V to 5.5 V); (4)±1.5% Total Output Voltage Variation ; (5)Efficiencies up to 95% ; (6)Output Overcurrent Protection (Nonlatching, Auto-Reset) ; (7)Operating Temperature: -40℃ to 85℃; (8)Safety Agency Approvals: UL/IEC/CSA-C22.2 60950-1; (9)Prebias Startup; (10)On/Off Inhibit; (11)Differential Output Voltage Remote Sense; (12)Adjustable Undervoltage Lockout; (13)Auto-Track Sequencing; (14)Ceramic Capacitor Version (PTH08T231W); (15)TurboTrans Technology; (16)Designed to meet Ultra-Fast Transient Requirements up to 300 A/μs; (17)SmartSync Technology.

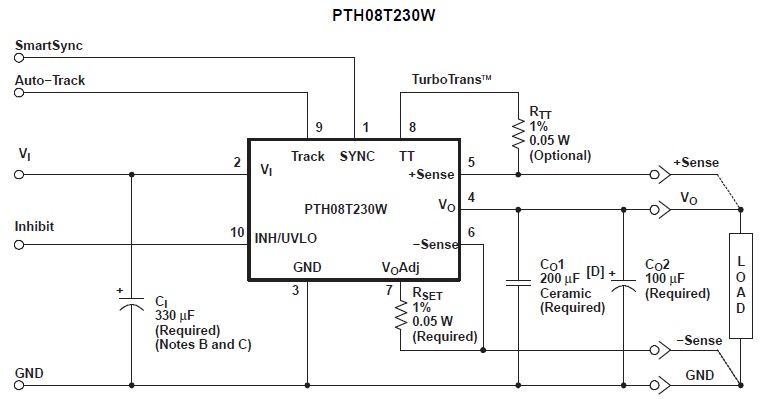

Diagrams
