Product Summary

The SST39VF1601-70-4I-B3KE devices are 1M x16 CMOS Multi-Purpose Flash (MPF) manufactured with SST’s proprietary, high performance CMOS SuperFlash technology. The split-gate cell design and thick oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST39VF1601-70-4I-B3KE write (Program or Erase) with a 3.0-3.6V power supply. The SST39VF1601-70-4I-B3KE write (Program or Erase) with a 2.7-3.6V power supply. These devices conform to JEDEC standard pinouts for x16 memories.

Parametrics

Absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential: -0.5V to VDD + 0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential: -1.0V to VDD + 1.0V; (5)Voltage on A9 Pin to Ground Potential: -0.5V to 13.2V; (6)Package Power Dissipation Capability (Ta = 25℃): 1.0W; (7)Surface Mount Lead Soldering Temperature (3 Seconds): 240℃; (8)Output Short Circuit Current: 50 mA.

Features

Features: (1)Organized as 1M x16; (2)Single Voltage Read and Write Operations; (3)Superior Reliability; (4)Low Power Consumption; (5)Sector-Erase Capability; (6)Fast Read Access Time; (7)Latched Address and Data; (8)Fast Erase and Word-Program; (9)Automatic Write Timing; (10)End-of-Write Detection; (11)CMOS I/O Compatibility; (12)JEDEC Standard; (13)Packages Available.

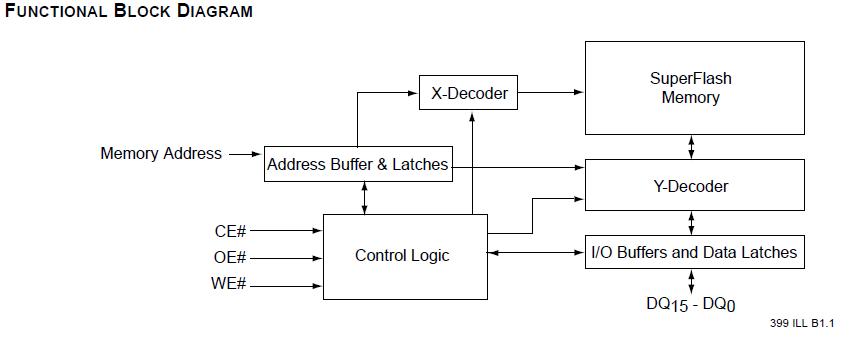

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SST39VF1601-70-4I-B3KE
SST39VF1601-70-4I-B3KE

Microchip Technology

Flash 16M (1Mx16) 70ns Industrial Temp

Data Sheet

0-245: $1.66
245-250: $1.45
250-500: $1.25
500-1000: $1.08
