Product Summary

The TPS70445PWPR is a dual-output, low dropout voltage regulator with integrated SVS for split voltage system. The TPS70445PWPR consists of dual-output, low-dropout voltage regulators with integrated SVS (RESET, POR, or power on reset) and power good (PG) functions. The TPS70445PWPR is capable of supplying 1 A and 2 A by regulator 1 and regulator 2 respectively. Quiescent current is typically 185 mA at full load.

Parametrics

TPS70445PWPR absolute maximum ratings: (1)Input voltage range: VIN1, VIN2: –0.3 to +7 V; (2)Voltage range at EN1, EN2: –0.3 to +7 V; (3)Output voltage range: 5.5 V; (4)Output voltage range: 5.5 V; (5)Maximum RESET, PG1, PG2 voltage: 7 V; (6)Maximum MR voltage: VIN1 V; (7)Peak output current: Internally limited; (8)Operating virtual junction temperature range, TJ: –40 to +150 ℃; (9)Storage temperature range, Tstg: –65 to +150℃; (10)ESD rating, HBM: 2 kV.

Features

TPS70445PWPR features: (1)Open Drain Power-On Reset with 120-ms Delay; (2)Open Drain Power Good for Regulator 1 and Regulator 2; (3)Ultralow 185mA (typ) Quiescent Current; (4)2mA Input Current During Standby; (5)Low Noise: 78mVRMS Without Bypass Capacitor; (6)Quick Output Capacitor Discharge Feature; (7)One Manual Reset Input; (8)2% Accuracy Over Load and Temperature; (9)Undervoltage Lockout (UVLO) Feature; (10)24-Pin Power PADTSSOP Package; (11)Thermal Shutdown Protection.

Diagrams

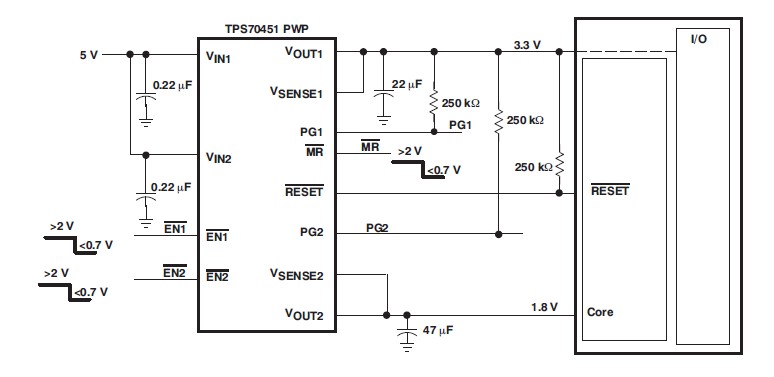

TPS70445PWPR logic diagram
