Product Summary

The TS3A5018PWE4 is a quad single-pole double-throw (SPDT) analog switch that is designed to operate from 2.3 V to 3.6 V. The TS3A5018PWE4 can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction.

Parametrics

TS3A5018PWE4 absolute maximum ratings: (1)V+ Supply voltage range: -0.5 to 4.6 V; (2)VNC, VNO Analog voltage range: -0.5 to 4.6 V; (3)IK Analog port diode current VNC, VNO, VCOM < 0: -50 mA; (4)INC INO On-state switch current VNC, VNO, VCOM = 0 to 7 V: -64 to 64 mA; (5)VI Digital input voltage range: -0.5 to 4.6 V; (6)IIK Digital input clamp current VI < 0: -50 mA; (7)I+ Continuous current through V+: -100 to 100 mA; (8)IGND Continuous current through GND: -100 to 100 mA; (9)Tstg Storage temperature range: -65 to 150 ℃.

Features

TS3A5018PWE4 features: (1)Low ON-State Resistance; (2)Low Charge Injection; (3)Excellent ON-State Resistance Matching; (4)Low Total Harmonic Distortion (THD); (5)2.3-V to 3.6-V Single-Supply Operation; (6)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (7)ESD Performance Tested Per JESD 22.

Diagrams

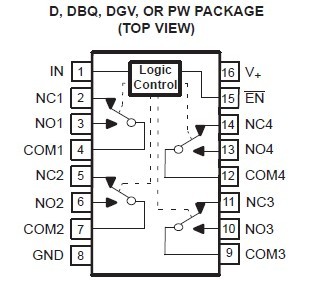

TS3A5018PWE4 diagram

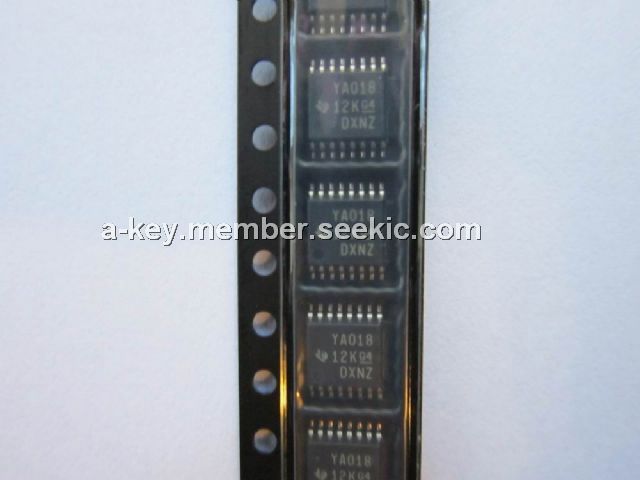

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TS3A5018PWE4
TS3A5018PWE4
Texas Instruments
Analog Switch ICs 10-Ohm Quad SPDT Analog Switch
Data Sheet
0-1: $0.52
1-25: $0.41
25-100: $0.32
100-250: $0.32
