Product Summary

The Microchip Technology Inc. 24LC04BT-ISN (24XX04*) is a 4 Kbit Electrically Erasable PROM. The device is organized as two blocks of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 μA and 1 mA, respectively. The 24LC04BT-ISN also has a page write capability for up to 16 bytes of data. The 24LC04BT-ISN is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 DFN, 2x3 TDFN, and MSOP packages and is also available in the 5-lead SOT-23, or 4-lead Chip Scale package.

Parametrics

24LC04BT-ISN absolute maximum ratings: (1)VCC: 6.5V; (2)All inputs and outputs w.r.t. VSS: -0.3V to VCC +1.0V; (3)Storage temperature: -65℃ to +150℃; (4)Ambient temperature with power applied: -40℃ to +125℃; (5)ESD protection on all pins: ≥ 4 kV.

Features

24LC04BT-ISN features: (1)Single Supply with Operation down to 1.7V for 24AA04 Devices, 2.5V for 24LC04B Devices; (2)Low-Power CMOS Technology: Read current 1 mA, typical; Standby current 1 μA, typical; (3)2-Wire Serial Interface, I2C Compatible; (4)Schmitt Trigger inputs for Noise Suppression; (5)Output Slope Control to eliminate Ground Bounce; (6)100 kHz and 400 kHz Clock Compatibility; (7)Page Write Time 3 ms, typical; (8)Self-Timed Erase/Write Cycle; (9)16-Byte Page Write Buffer; (10)Hardware Write-Protect; (11)ESD Protection >4,000V; (12)More than 1 Million Erase/Write Cycles; (13)Data Retention >200 Years; (14)Factory Programming Available; (15)Packages include 8-lead PDIP, SOIC, TSSOP, DFN, TDFN, MSOP and 5-lead SOT-23 or 4-lead Chip Scale; (16)Pb-Free and RoHS Compliant; (17)Temperature Ranges: - Industrial (I): -40℃ to +85℃; Automotive (E): -40℃ to +125℃.

Diagrams

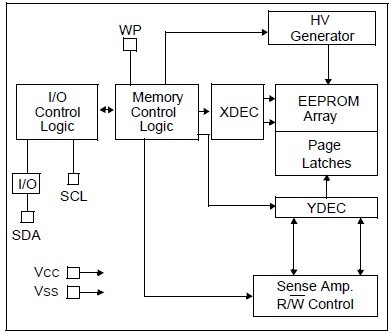

24LC04BT-ISN block diagram
