Product Summary
The EP1C4F324C8N Cyclone device contains a two-dimensional row- and column-based architecture to implement custom logic. Column and row interconnects of varying speeds provide signal interconnects between LABs and embedded memory blocks.This Cyclone device I/O pin is fed by an I/O element (IOE) located at the ends of LAB rows and columns around the periphery of the device. The EP1C4F324C8N provides a global clock network and up to two PLLs. The global clock network consists of eight global clock lines that drive throughout the entire device.
Parametrics
Absolute maximum ratings: (1)VCCINT, Supply voltage With respect to ground: –0.5 to 2.4 V; (2)VCCIO, Supply voltage: –0.5 to 4.6 V; (3)VCCA, Supply voltage With respect to ground: –0.5 to 2.4 V; (4)VI DC, input voltage: –0.5 to 4.6 V; (5)IOUT, DC output current, per pin: –25 to 25 mA; (6)TSTG, Storage temperature No bias: –65 to 150 ℃; (7)TAMB, Ambient temperature Under bias: –65 to 135 ℃; (8)TJ, Junction temperature BGA packages under bias: 135 ℃ max.
Features
Features: (1)2,910 to 20,060 LEs; (2)Up to 294,912 RAM bits (36,864 bytes); (3)Supports configuration through low-cost serial configuration device; (4)Support for LVTTL, LVCMOS, SSTL-2, and SSTL-3 I/O standards; (5)Support for 66- and 33-MHz, 64- and 32-bit PCI standard; (6)High-speed (640 Mbps) LVDS I/O support; (7)Low-speed (311 Mbps) LVDS I/O support; (8)311-Mbps RSDS I/O support; (9)Up to two PLLs per device provide clock multiplication and phase shifting; (10)Up to eight global clock lines with six clock resources available per logic array block (LAB) row; (11)Support for external memory, including DDR SDRAM (133 MHz), FCRAM, and single data rate (SDR) SDRAM; (12)Support for multiple intellectual property (IP) cores, including AlteraR MegaCoreR functions and Altera Megafunctions Partners Program (AMPPSM) megafunctions.

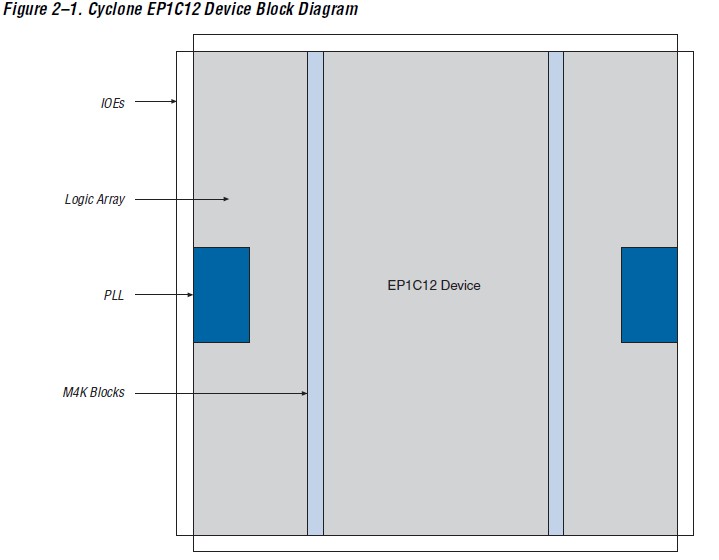

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP1C4F324C8N |
|
IC CYCLONE FPGA 4K LE 324-FBGA |
Data Sheet |
|
|
||||||
