SN74AHCT1G32DCKR

SC70-5, single 2-input positive-or gate, Supply voltage range–0.5 V to 7 V, Input clamp current–20 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.10

PartNumber:: SN74AHCT1G32DCKR

Brand:: Texas Instruments - TI | Pack: SC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lily Zeng 's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-24

From Other Seller

Part Number:SN74AHCT1G32DCKR
US $0.10 - 0.10
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

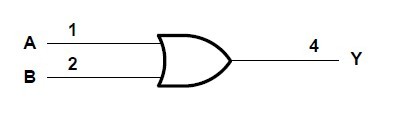

The SN74AHCT1G32DCKR is a single 2-input positive-OR gate. The device performs the Boolean function Y =A+B in positive logic.

Parametrics

SN74AHCT1G32DCKR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input voltage range, VI: –0.5 V to 7 V ; (3)Output voltage range, VO: –0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI < 0): –20 mA; (5)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (6)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (7)Continuous current through each VCC or GND: ±75 mA; (8)Package thermal impedance, θJA: 58℃/W; (9)Storage temperature range, Tstg: –65 to 150℃.

Features

SN74AHCT1G32DCKR features: (1)Operating Range of 4.5 V to 5.5 V; (2)Max tpd of 8 ns at 5 V; (3)Low Power Consumption, 10-μA Max ICC; (4)±8-mA Output Drive at 5 V; (5)Inputs Are TTL-Voltage Compatible; (6)Latch-Up Performance Exceeds 250 mA Per JESD 17; (7)ESD Protection Exceeds JESD 22; (8)2000-V Human-Body Model (A114-A); (9)200-V Machine Model (A115-A); (10)1000-V Charged-Device Model (C101).
