Product Summary

The BAT54SLT1G is a schottky diode. This diode is designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited.

Parametrics

BAT54SLT1G absolute maximum ratings: (1)Reverse Voltage VR: 30 V; (2)Forward Power Dissipation @ TA = 25℃, Derate above 25℃, PF: 225mW; 1.8 mW/℃; (3)Forward Current (DC) IF: 200 Max mA; (4)Junction Temperature TJ: -55 to 125 ℃; (5)Storage Temperature Range Tstg: -55 to +150 ℃.

Features

BAT54SLT1G features: (1)Extremely Fast Switching Speed; (2)Low Forward Voltage - 0.35 V (Typ) @ IF = 10 mAdc; (3)Pb-Free Package is Available.

Diagrams

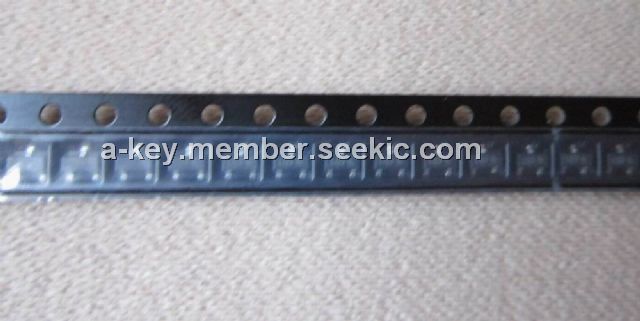

BAT54SLT1G diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BAT54SLT1G
BAT54SLT1G

ON Semiconductor

Schottky (Diodes & Rectifiers) 30V 225mW Dual

Data Sheet

0-1: $0.14
1-25: $0.11
25-100: $0.08
100-500: $0.04
