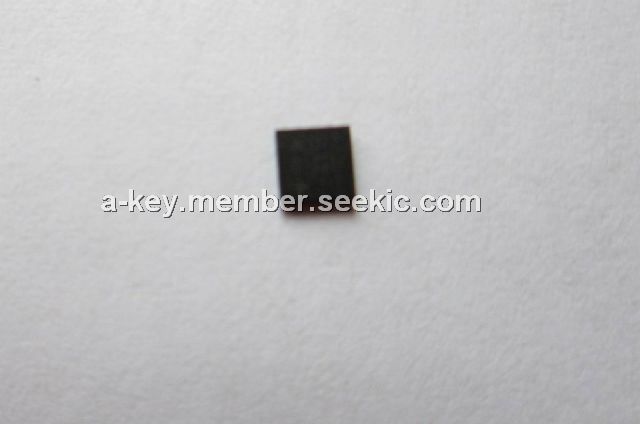

MAX1554ETA

High-Efficiency, 40V Step-Up Converters, for 2 to 10 White LEDs, QFN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.00

PartNumber:: MAX1554ETA

Brand:: Maxim Integrated Products - Maxim | Pack: QFN | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lily Zeng 's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-24

From Other Seller

Part Number:MAX1554ETA
US $1.00 - 1.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

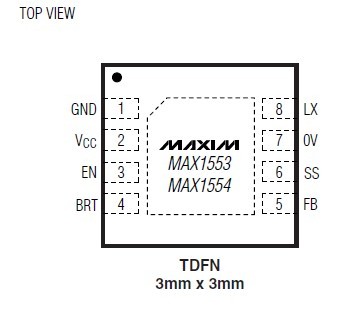

The MAX1554ETA drives white LED in series with a constant current to provide efficient display backlighting in cellular phones, PDAs, and other hand-held devices. The step-up converter includes an internal 40V, low RDSON, N-channel MOSFET switch for high efficiency and maximum battery life. The MAX1554ETA has a current limit of 970mA for driving up to 10 white LEDs. A single analog/PWM Dual Mode. input provides two simple means of brightness adjustment. A separate enable input provides on/off control. Soft-start minimizes inrush current during startup. The MAX1554ETA is available in space-saving 8-pin TDFN 3mm x 3mm packages.

Parametrics

MAX1554ETA absolute maixmum ratings: (1)VCC, FB, OV to GND: -0.3V to +6.0V; (2)LX to GND: -0.3V to +45V; (3)EN, BRT, SS to GND: -0.3V to (VCC + 0.3V); (4)ILX: 0.9ARMS; (5)Continuous Power Dissipation (TA = +70℃), 8-Pin 3mm x 3mm TDFN (derate 24.4mW/℃ above +70℃): 1951mW; (6)Operating Temperature Range: -40℃ to +85℃; (7)Junction Temperature: +150℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (soldering, 10s): +300℃.

Features

MAX1554ETA features: (1)Constant-Current Regulation for Even LED Illumination; (2)Internal 40V MOSFET Switch Capable of Driving 10 LEDs; (3)Small, Low-Profile External Components; (4)2.7V to 5.5V Input Range; (5)Up to 88% Efficiency Driving 6 LEDs; (6)Up to 82% Efficiency Driving 9 LEDs (20mA, VCC = 3.6V); (7)Analog or PWM Control of LED Intensity; (8)Optimized for Low Input Ripple; (9)Soft-Start to Minimize Inrush Current; (10)3mm x 3mm 8-Pin TDFN Package.
