Product Summary

The TLC271CDR is a LinCMOSE programmable low-power operational amplifier. The TLC271CDR operational amplifier combines a wide range of input offset voltage grades with low offset voltage drift and high input impedance. In addition, the TLC271CDR offers a bias-select mode that allows the user to select the best combination of power dissipation and ac performance for a particular application. The TLC271CDR uses Texas Instruments silicon-gate LinCMOSE technology, which provides offset voltage stability far exceeding the stability available with conventional metal-gate processes.

Parametrics

TLC271CDR absolute maximum ratings: (1)Supply voltage, VDD: 18 V; (2)Differential input voltage, VID: ±VDD; (3)Input voltage range, VI (any input): – 0.3 V to VDD; (4)Input current, II: ±5 mA; (5)Output current, IO: ±30 mA; (6)Duration of short-circuit current at (or below) 25℃: Unlimited; (7)Storage temperature range: –65℃ to 150℃; (8)Case temperature for 60 seconds: FK package:260℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D or P package: 260℃; (10)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: JG package: 300℃.

Features

TLC271CDR features: (1)Input Offset Voltage Drift Typically 0.1 mV/Month, Including the First 30 Days; (2)Single-Supply Operation; (3)Common-Mode Input Voltage Range Extends Below the Negative Rail (C-Suffix and I-Suffix Types); (4)Low Noise 25 nV//Hz Typically at f = 1 kHz (High-Bias Mode); (5)Output Voltage Range includes Negative Rail; (6)High Input Impedance 1012 W Typ; (7)ESD-Protection Circuitry; (8)Small-Outline Package Option Also Available in Tape and Reel; (9)Designed-In Latch-Up Immunity.

Diagrams

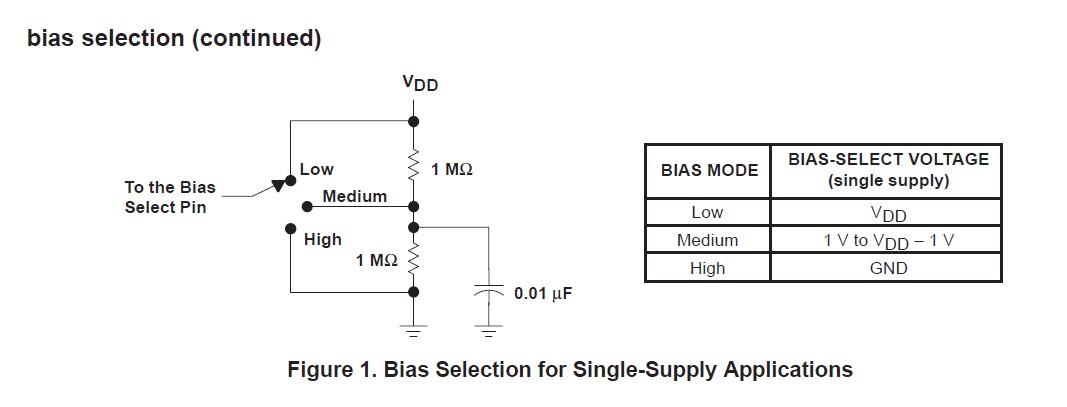

TLC271CDR diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

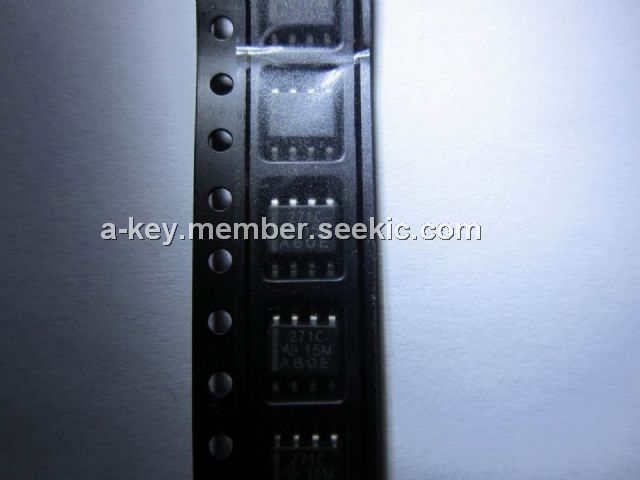

TLC271CDR
TLC271CDR
Texas Instruments
Operational Amplifiers - Op Amps Low Pwr Programmable
Data Sheet
0-1: $0.52
1-25: $0.40
25-100: $0.35
100-250: $0.30
TLC271CDRG4
TLC271CDRG4
Texas Instruments
Operational Amplifiers - Op Amps LinCMOS Prog Low-Power
Data Sheet
0-1700: $0.19
1700-2000: $0.17
2000-2500: $0.17
2500-5000: $0.17
