Product Summary
The N74F126D is a 3-state Quad buffer.
Parametrics
N74F126D absolute maximum ratings: (1)Supply voltage:–0.5 to +7.0 V; (2)Input voltage:–0.5 to +7.0 V; (3)Input current:–30 to +5 mA; (4)Voltage applied to output in High output state:–0.5V to VCC; (5)Current applied to output in Low output state:128 mA; (6)Operating free-air temperature range:0 to +70℃; (7)Storage temperature range:–65 to +150℃.
Features
N74F126D feature: (1)High impedance NPN base inputs for reduced loading (20μA in High and Low states).

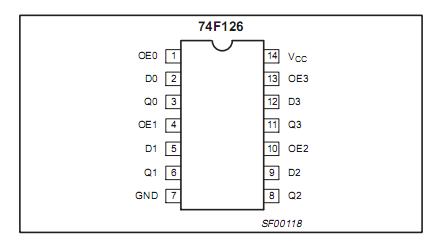

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 N74F126D,602 |
NXP Semiconductors |
Buffers & Line Drivers QUAD 3-STATE BUS BUF |
Data Sheet |
|
|
||||||||||||
|
N74F126D,623 |
NXP Semiconductors |
Buffers & Line Drivers QUAD 3-STATE BUS BUF |
Data Sheet |
|
|
||||||||||||
