Product Summary

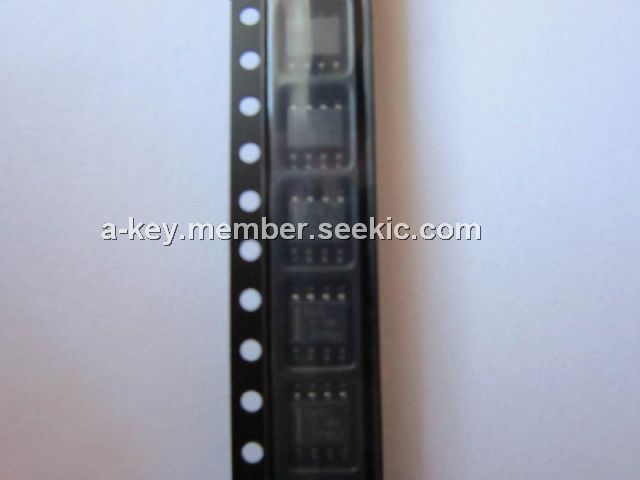

The TPS5430DDAR is a 5.5V step-down swift converter. The TPS5430DDAR device is available in a thermally enhanced, easy to use 8-pin SOIC PowerPAD. package. TI of the TPS5430DDAR provides evaluation modules and the SWIFT. Designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.
Parametrics
TPS5430DDAR absolute maximum ratings: (1)IO Source current PH: Internally Limited; (2)IO Leakage current PH: 10 mA; (3)TJ Operating virtual junction temperature range: –40 to 125 ℃; (4)TSTG Storage temperature: –65 to 150 ℃; (5)Lead temperature 1,6 mm (1/16-inch) from case for 10 seconds: 300 ℃.
Features
TPS5430DDAR features: (1)Internal Compensation Minimizes External Parts Count; (2)Fixed 500 kHz Switching Frequency for Small Filter Size; (3)Improved Line Regulation and Transient Response by Input Voltage Feed Forward; (4)System Protected by Over Current Limiting and Thermal Shutdown.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS5430DDAR |
Texas Instruments |
DC/DC Switching Regulators 5.5 to 36V Input 3A Step Dwn Converter |
Data Sheet |
|
|
||||||||||||
|
TPS5430DDARG4 |
Texas Instruments |
DC/DC Switching Regulators 5.5 to 36V Input 3A Step Dwn Converter |
Data Sheet |
|
|
||||||||||||
