Product Summary

The AT45DB021D is a 2.7V, serial-interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. The AT45DB021D supports RapidS serial interface for applications requiring very high speed operations. In addition to the main memory, the AT45DB021D also contains one SRAM buffer of 256/264 bytes. EEPROM emulation (bit or byte alterability) is easily handled with a self-contained three step read-modify-write operation.

Parametrics

AT45DB021D absolute maximum ratings: (1)Temperature under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)All Input Voltages (except VCC but including NC pins)) with Respect to Ground:-0.6V to +6.25V; (4)All Output Voltages with Respect to Ground:-0.6V to VCC + 0.6V.

Features

AT45DB021D features: (1)Single 2.7V to 3.6V Supply; (2)RapidS Serial Interface: 66 MHz Maximum Clock Frequency; (3)JEDEC Standard Manufacturer and Device ID Read; (4)100,000 Program/Erase Cycles Per Page Minimum; (5)Data Retention – 20 Years; (6)Industrial Temperature Range; (7)Green (Pb/Halide-free/RoHS Compliant) Packaging Options; (8)Low-power Dissipation.

Diagrams

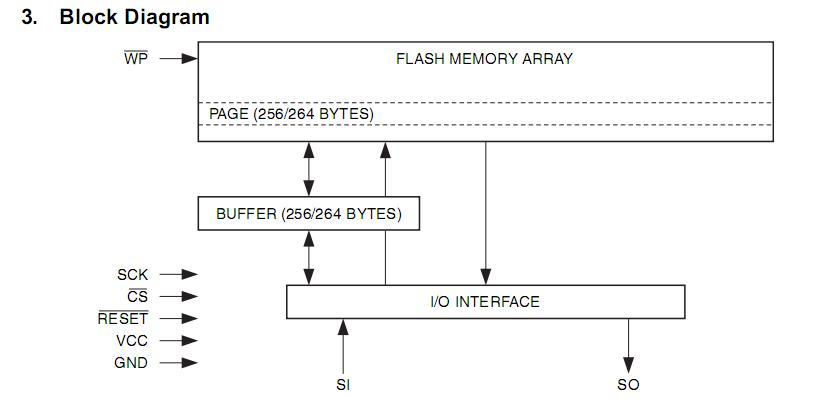

AT45DB021D block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT45DB021D-MH-T
AT45DB021D-MH-T

Atmel

Flash 2 Megabit 2.7V-3.6V

Data Sheet

Negotiable
AT45DB021D-MH-Y
AT45DB021D-MH-Y

Atmel

Flash 2 Megabit 2.7V-3.6V

Data Sheet

0-1: $0.60
1-10: $0.58
10-25: $0.54
25-100: $0.51
AT45DB021D-SH-T
AT45DB021D-SH-T

Atmel

Flash 2M Dataflash

Data Sheet

Negotiable
AT45DB021D-MU
AT45DB021D-MU

Atmel

Flash 2M SERIAL 2.7V - IND TEMP

Data Sheet

Negotiable
AT45DB021D-SH-B
AT45DB021D-SH-B

Atmel

Flash 2M Dataflash

Data Sheet

Negotiable
AT45DB021D-SSH-B
AT45DB021D-SSH-B


IC FLASH 2MBIT 66MHZ 8SOIC

Data Sheet

Negotiable
AT45DB021D-SSH-T
AT45DB021D-SSH-T

Atmel

Flash 2 Megabit 2.7V-3.6V

Data Sheet

Negotiable
AT45DB021D-SSU
AT45DB021D-SSU

Atmel

Flash 2M SERIAL 2.7V - IND TEMP

Data Sheet

Negotiable
