Product Summary

The SI2305ADS is a P-Channel 8-V (D-S) MOSFET. The applications of it are Load Switch and DC/DC Converter.

Parametrics

SI2305ADS absolute maximum ratings: (1)Drain-Source Voltage:-8V; (2)Gate-Source Voltage:±8V; (3)Continuous Drain Current (TJ = 150℃):TC=25℃:-5.4A, TC=70℃:-4.3A, TA=25℃:-4.1A, TA=70℃:-3.3A; (4)Pulsed Drain Current:-10A; (5)Continuous Source-Drain Diode Current:TC=25℃:-1.4A, TA=25℃:-0.8A; (6)Maximum Power Dissipation:TC=25℃:1.7W, TC=70℃:1.1W, TA=25℃:0.96W, TA=70℃:0.62W; (7)Operating Junction and Storage Temperature Range:-50 to 150℃; (8)Soldering Recommendations (Peak Temperature): 260℃.

Features

SI2305ADS features: (1)Halogen-free Option Available; (2)TrenchFET Power MOSFET; (3)100 % Rg Tested.

Diagrams

SI2305ADS pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

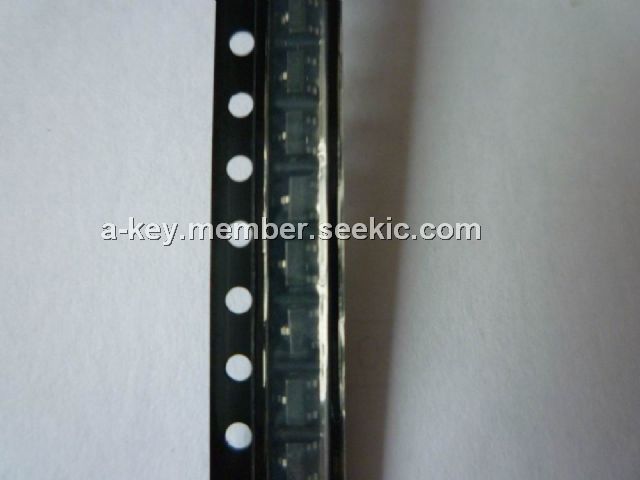

Si2305ADS
Si2305ADS

Other


Data Sheet

Negotiable
Si2305ADS-T1-E3
Si2305ADS-T1-E3

Vishay/Siliconix

MOSFET 8.0V 4.1A 1.7W 40mohm @ 4.5V

Data Sheet

0-1: $0.43
1-10: $0.30
10-100: $0.25
100-250: $0.22
SI2305ADS-T1-GE3
SI2305ADS-T1-GE3

Vishay/Siliconix

MOSFET 8.0V 4.1A 1.7W 40 mohms @ 4.5V

Data Sheet

0-1: $0.36
1-10: $0.23
10-100: $0.19
100-250: $0.16
