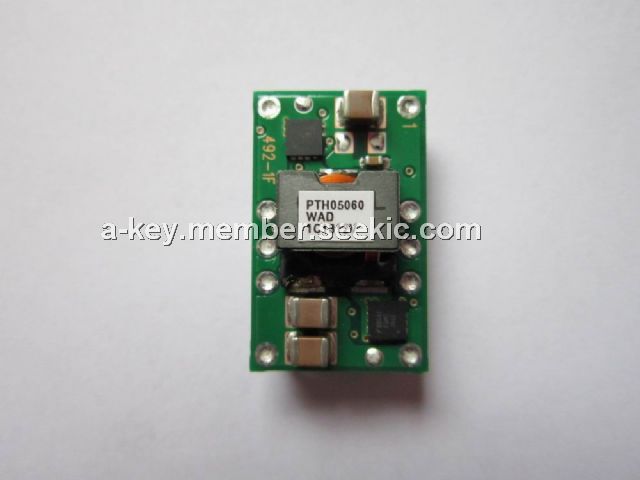

PTH05060WAD

non-isolated power module, 10-DIP, 5V, 10A, 36W, PTH05060WAD

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.00

PartNumber:: PTH05060WAD

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lily Zeng 's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-24

From Other Seller

Part Number:PTH05060WAD
US $1.00 - 1.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PTH05060WAD is a non-isolated power module. It is small in size but big on performance and flexibility. Its high output current, compact footprint, and industry leading features offers system designers a versatile module for powering complex multi-processor digital systems. Target applications of the PTH05060WAD include complex multi-voltage, multi-processor systems that incorporate the industry’s high-speed DSPs, micro-processors and bus drivers.

Parametrics

PTH05060WAD absolute maximum ratings: (1)Track Input Voltage, Vtrack: –0.3 to Vin + 0.3 V; (2)Operating Temperature Range, Ta: –40 to 85℃; (3)Solder Reflow Temperature, Treflow: 235℃; (4)Storage Temperature, Ts: –40 to 125℃; (5)Mechanical Shock: 200 Gs; (6)Mechanical Vibration: 20 Gs; (7)Weight: 3.7 grams.

Features

PTH05060WAD features: (1)Up to 10-A Output Current; (2)5-V Input Voltage; (3)Wide-Output Voltage Adjust (0.8 V to 3.6 V); (4)Efficiencies up to 96 %; (5)150 W/in Power Density; (6)On/Off Inhibit; (7)Output Voltage Sense; (8)Pre-Bias Startup; (9)Margin Up/Down Controls; (10)Under-Voltage Lockout; (11)Auto-Track Sequencing; (12)Output Over-Current Protection (Non-Latching, Auto-Reset); (13)Operating Temp: –40 to +85℃; (14)DSP Compatible Output Voltages; (15)Safety Agency Approvals: UL 1950, CSA 22.2 950, EN60950 VDE (Pending); (16)Point-of-Load Alliance (POLA) Compatible.
